BreadCrumb Detail Events for Motorized Assets

The Breadcrumb Detail for motorized assets provides tracking details for a specific day or as far back as 90 days. The TTU-2820 device reports moving events every 2 hours while on vehicle/asset power and in motion. Additionally, the TTU-2820 reports a Power Up event when switching from its internal battery to 12v or 24v battery and a Power Down event when switching from 12v or 24v battery back to its internal battery. When the device is on internal battery and motion is detected, the device wakes up, reports a Motion event and then returns to sleep for one hour. After the hour interval, the device reports a Position event. If no motion is detected, the device returns to sleep for twenty-four hours. The device reports a Position event every 24 hours.

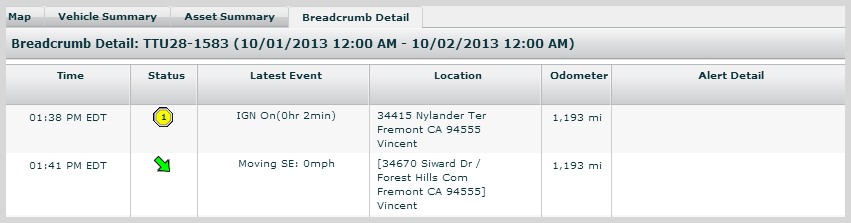

Moving events every 2 hours while in motion and on vehicle battery

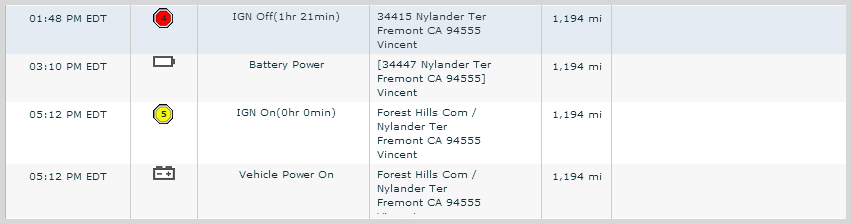

Power Up and Power Down events

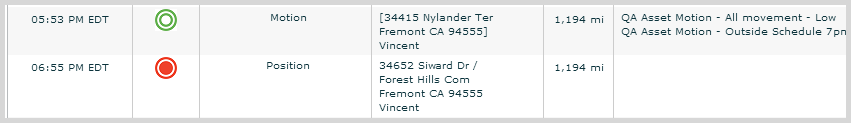

Motion and Position events
